Open Playback Recorder

The Open Playback Recorder can record three lists of voice messages that its user can playback via the trigger of an accessible button connected through a 3.5 mm mono jack. It aims to assist users with communication difficulties by giving them alternative methods to engage in conversation. This device has functionality similar to AbleNet’s Big Mack or Step by Step.

The device is comprised of off-the-shelf electronics and 3D printed parts. The overall cost of materials is about $90 (plus $8 for component shipping).

The Open Playback Recorder is Open Assistive Technology (OpenAT) and is certified as Open Source Hardware by the Open Source Hardware Association under the OSHWA UID CA000050. Under the terms of the open source licenses, the device may be built, used, and improved upon by anyone.

Makers Making Change Assistive Device Library

• https://www.makersmakingchange.com/s/product/open-playback-recorder/01tJR000003DNOVYA4

How to Obtain the Device

1. Do-it-Yourself (DIY) or Do-it-Together (DIT)

This is an open-source assistive technology, so anyone is free to build it. All of the files and instructions required to build the device are contained within this repository. Refer to the Maker Guide below.

2. Request a build of this device

You may also submit a build request through the MMC Library Page to have a volunteer maker build the device. As the requestor, you are responsible for reimbursing the maker for the cost of materials and any shipping.

3. Build this device for someone else

If you have the skills and equipment to build this device, and would like to donate your time to create the device for someone who needs it, visit the MMC Maker Wanted section.

Build Instructions

1. Read through the Maker Guide

The Maker Guide contains all the necessary information to build this device, including tool lists, assembly instructions, programming instructions (if applicable) and testing.

2. Order the Off-The-Shelf Components

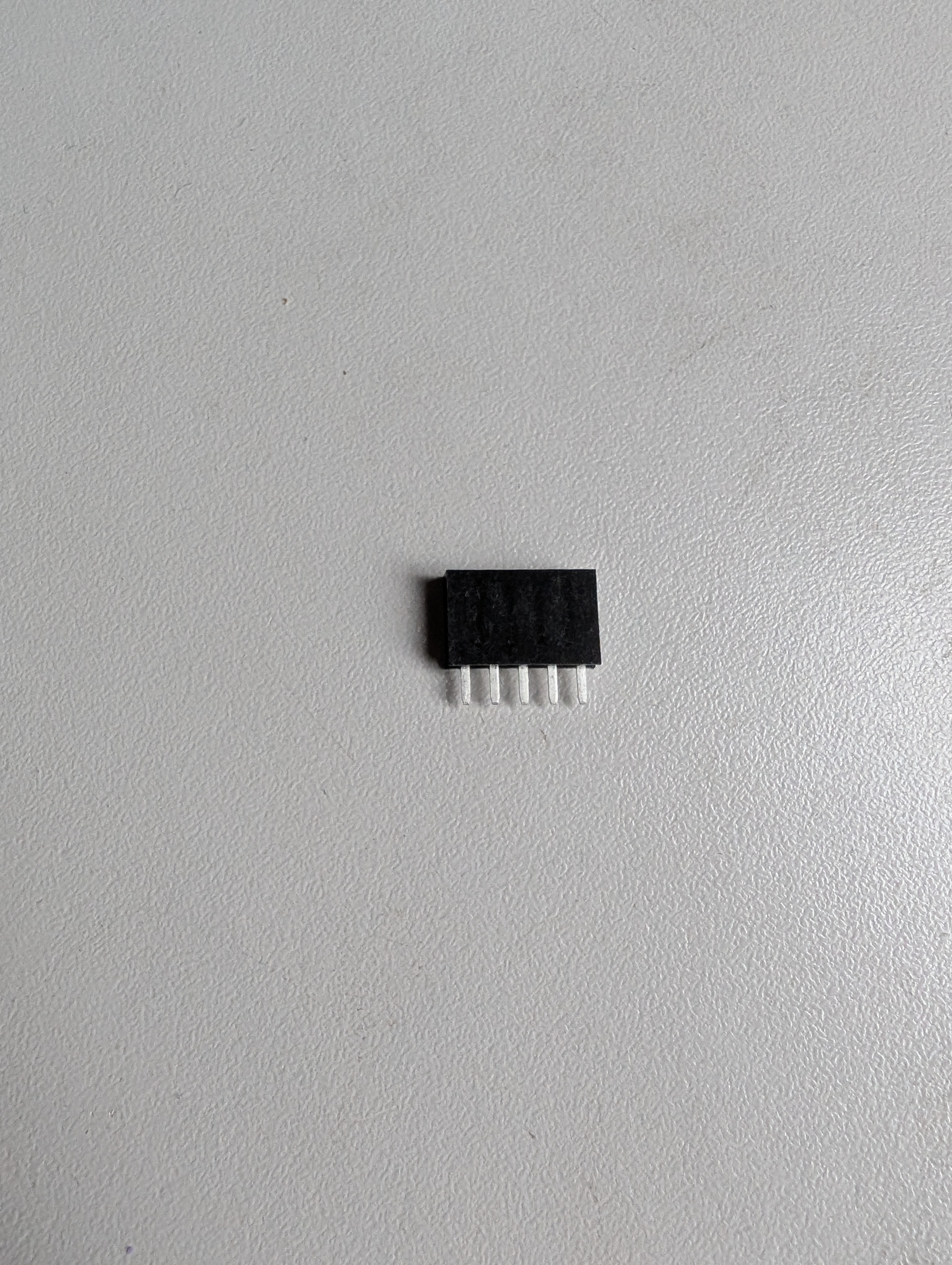

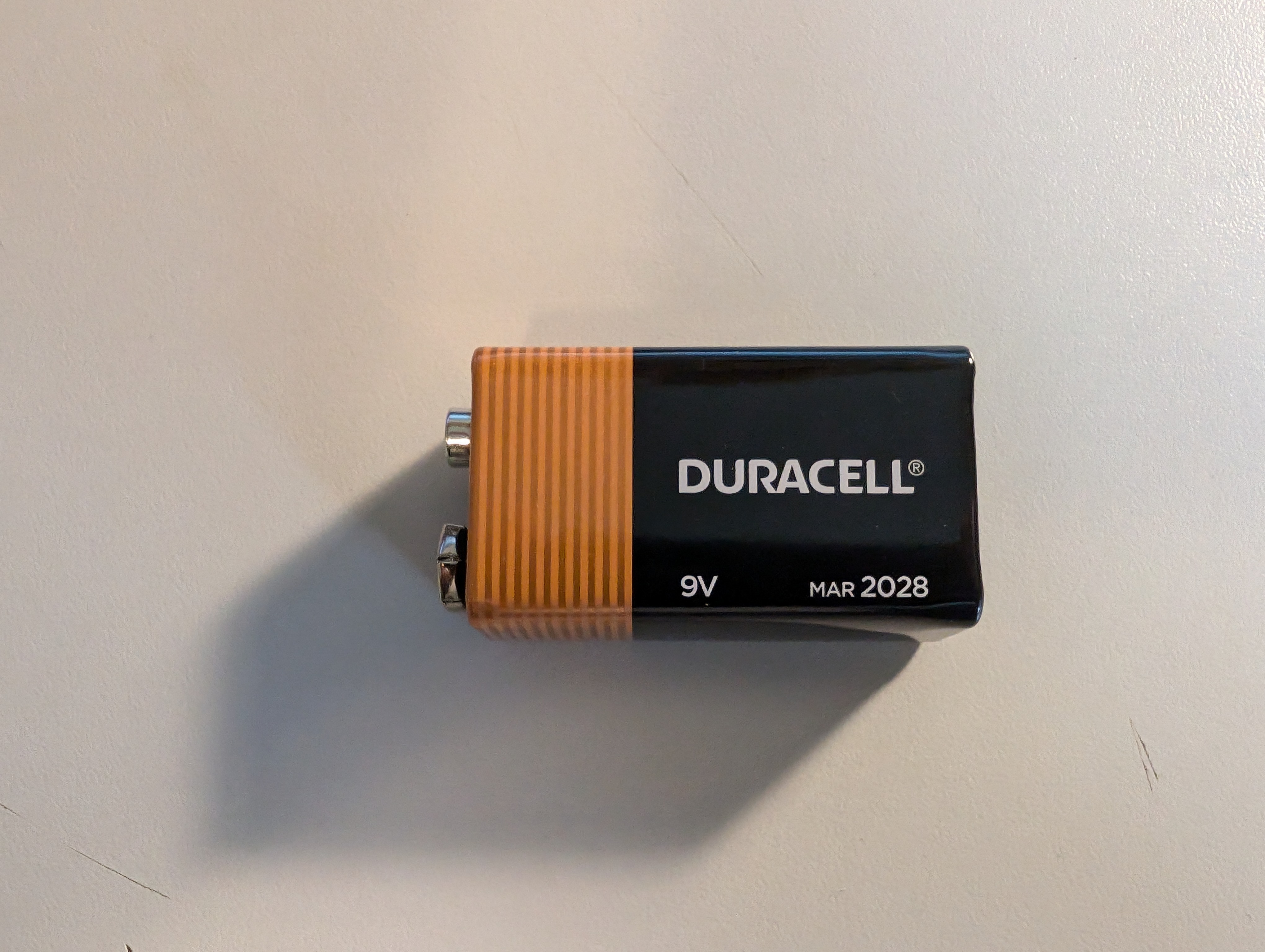

The Bill of Materials lists all of the parts and components required to build the Open Playback Recorder. Several components for this device will need to be ordered online.

3. Order the PCBs

The PCB files contain the Gerber files needed to order the PCBs, and instructions for how to order PCBs can be found in the Maker Guide

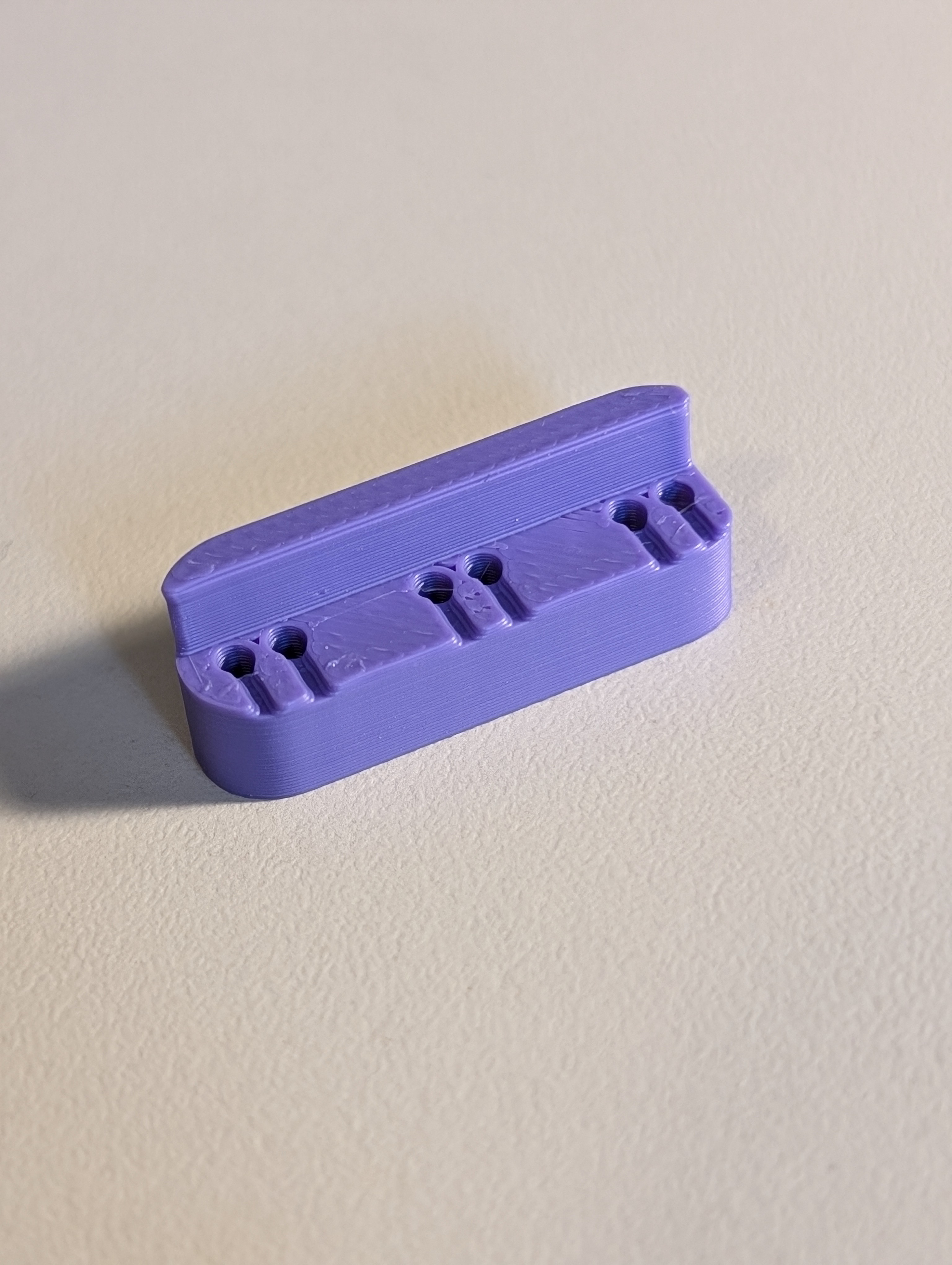

4. Print the 3D Printable components

All of the files and individual print files can be in the /Build_Files/3D_Printing_Files folder.

5. Assemble the Open Playback Recorder

Reference the Maker Guide for the tools and steps required to build each portion.

How to improve this Device

As open source assistive technology, you are welcomed and encouraged to improve upon the design.

Files

Documentation

Document	Version	Link
Design Rationale	2.0	Open_Playback_Recorder_Design_Rationale
Maker Guide	2.0	Open_Playback_Recorder_Maker_Checklist
Bill of Materials	2.0	Open_Playback_Recorder_Bill_of_Materials
User Guide	2.0	Open_Playback_Recorder_User_Guide
Changelog	2.0	Open_Playback_Recorder_Changelog

Design Files

• CAD Files
• PCB Files

Build Files

• 3D Printing Files
• PCB Files

Software Files

• Software Files

Attribution

Designers:

• Neil Squire Society / Makers Making Change

Contributors:

• Brad Wellington
• Erik Steinthorson
• Jake McIvor
• Derrick Andrews

License

Copyright (c) 2024 Neil Squire / Makers Making Change.

This repository describes Open Hardware:

• Everything needed or used to design, make, test, or prepare the Open Playback Recorder is licensed under the CERN 2.0 Weakly Reciprocal license (CERN-OHL-W v2) or later .
• All software is under the GNU General Public License v3.0 (GPL-3.0).
• Accompanying material such as instruction manuals, videos, and other copyrightable works that are useful but not necessary to design, make, test, or prepare the Open Playback Recorder are published under a Creative Commons Attribution-ShareAlike 4.0 license (CC BY-SA 4.0) .

You may redistribute and modify this documentation and make products using it under the terms of the CERN-OHL-W v2. This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN-OHL-W v2 for applicable conditions.

Source Location: https://github.com/makersmakingchange/Open-Playback-Recorder

---
