Tactile Maps

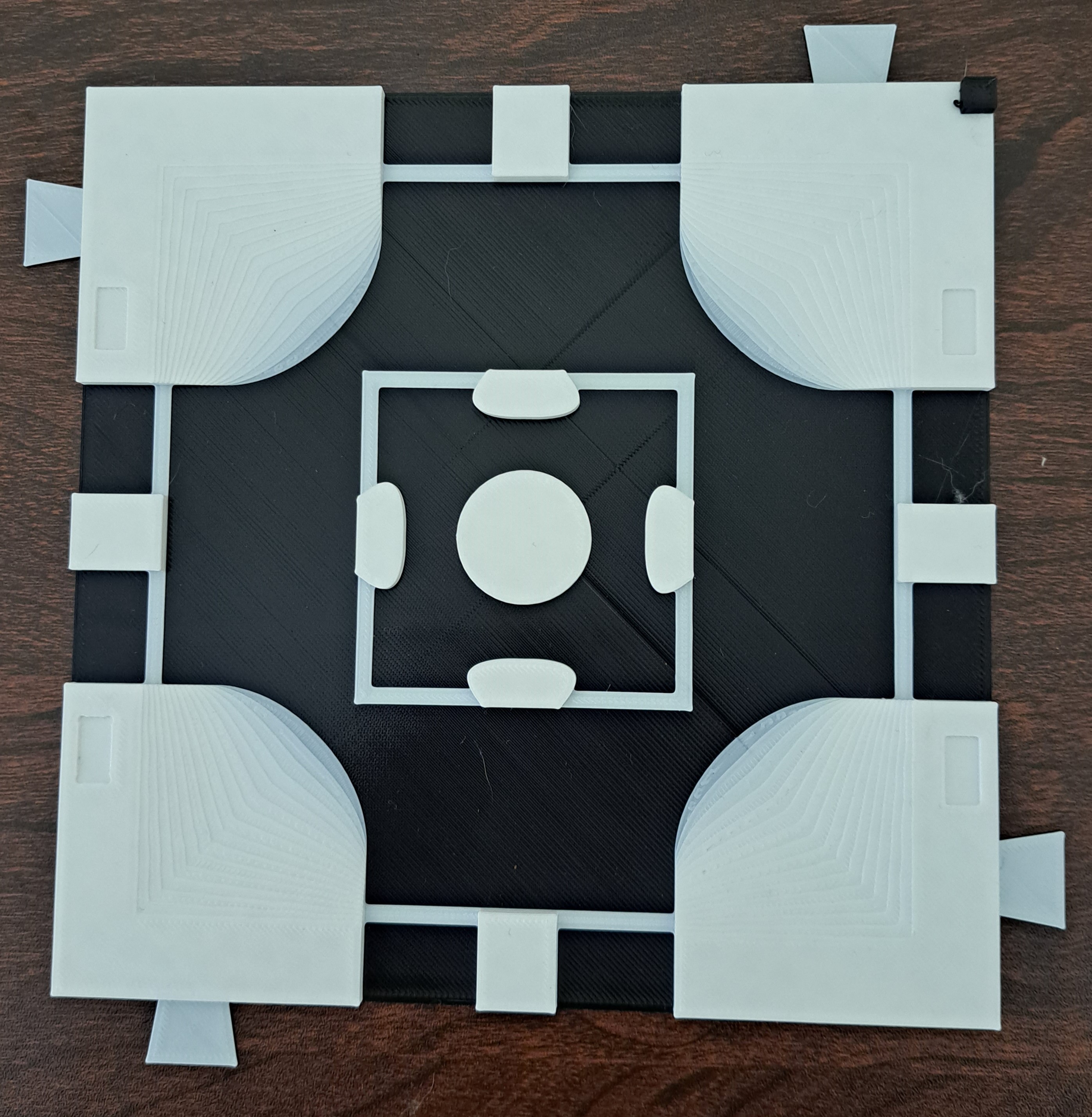

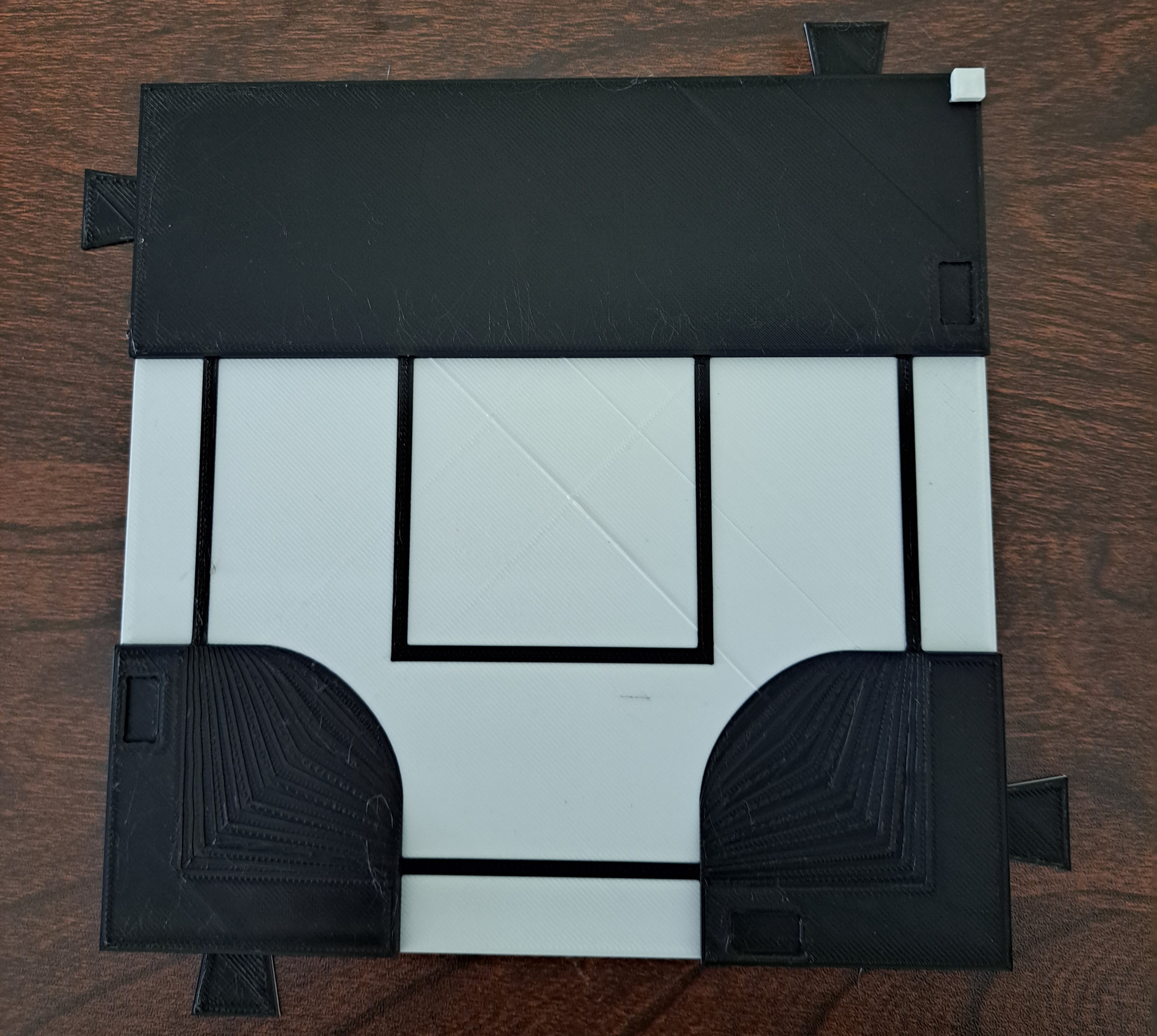

The Tactile Maps are designed to help users with visual impairments learn to navigate different types of intersections with various traffic signs and signals. Maps can be used separately as a learning tool for specific intersections and traffic signs and signals, or can be connected together to plan routes between locations. The legend includes Braille labels for the different representations of traffic signs and signals.

Makers Making Change Assistive Device Library

• https://www.makersmakingchange.com/s/product/tactile-maps/01tJR000000nEbJYAU

Getting Started

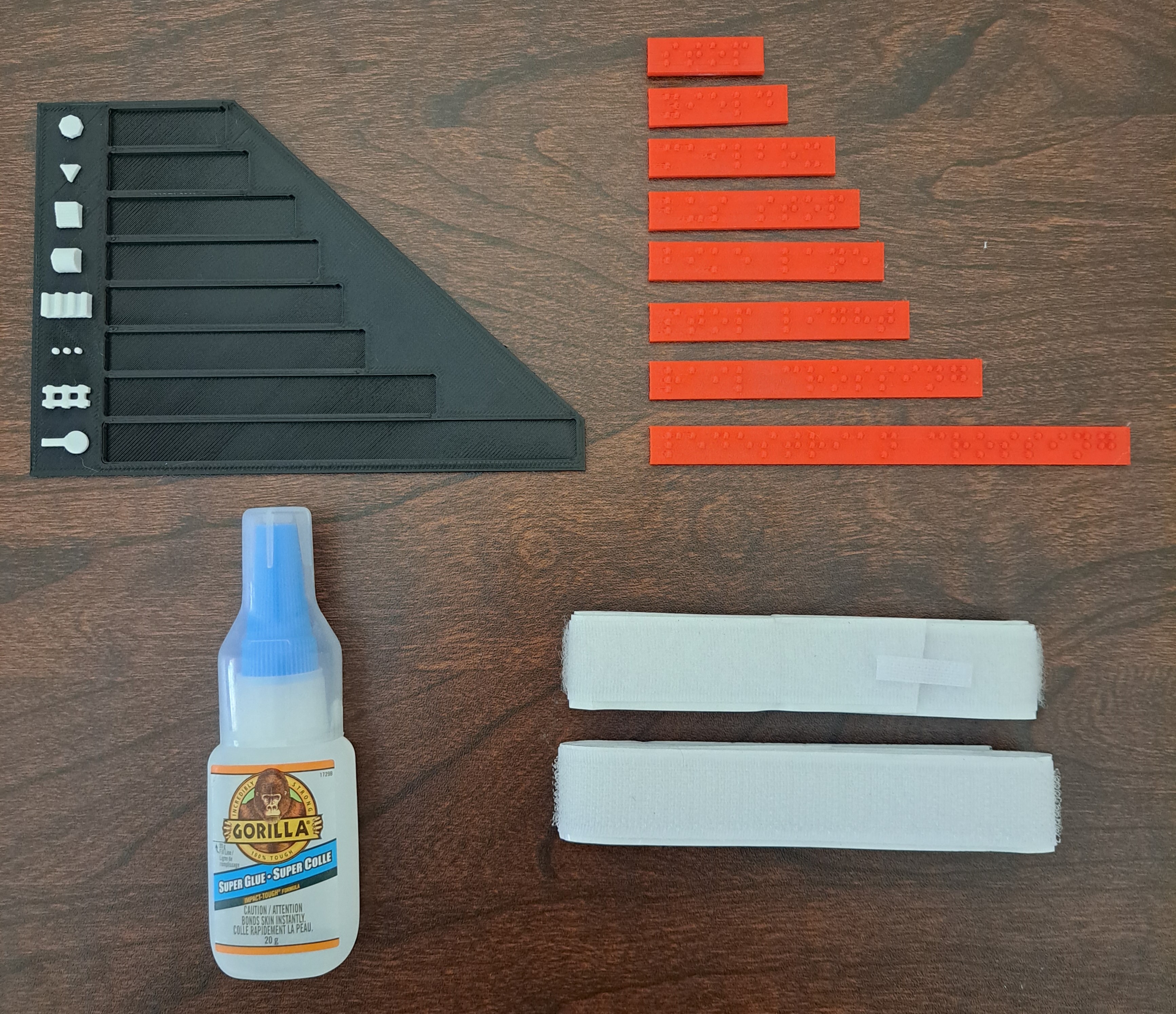

1. Order the Off-The-Shelf Components

The Bill of Materials lists all of the parts and components required to build the Tactile Maps.

2. Print the 3D Printable components

Print the components requested by the user.

All of the files and individual print files can be in the /Build_Files/3D_Printing_Files folder.

3. Assemble the Tactile Maps.

Reference the Assembly Guide for the tools and steps required to build the maps.

Files

Documentation

Document	Version	Link
Design Rationale	1.0	Tactile_Maps_Design_Rationale
Bill of Materials	1.0	Tactile_Maps_BOM
Maker Guide	1.0	Tactile_Maps_Instructions
User Guide	1.0	Tactile_Maps_User_Guide
Changelog	1.0	Tactile_Maps_Changelog

Design Files

• CAD Files

Build Files

• 3D Printing Files

License

Everything needed or used to design, make, test, or prepare the Tactile Maps is licensed under the CERN 2.0 2.0 Permissive license https://ohwr.org/project/cernohl/wikis/Documents/CERN-OHL-version-2 (CERN-OHL-P).

Accompanying material such as instruction manuals, videos, and other copyrightable works that are useful but not necessary to design, make, test, or prepare the Tactile Maps are published under a Creative Commons Attribution-ShareAlike 4.0 license https://creativecommons.org/licenses/by-sa/4.0/ (CC BY-SA 4.0).
